CAS PD-II ECR Weigh Only ECR & POS Interface Scale (PDII)

CAS PDII - Weigh Only Scale - Connect to a POS system with a serial cable, to transfer the weight to the POS software, or use it stand alone for weight only.

CAS PD-II ECR & POS Weigh Only Interface Scale  (Includes with Dual Display)

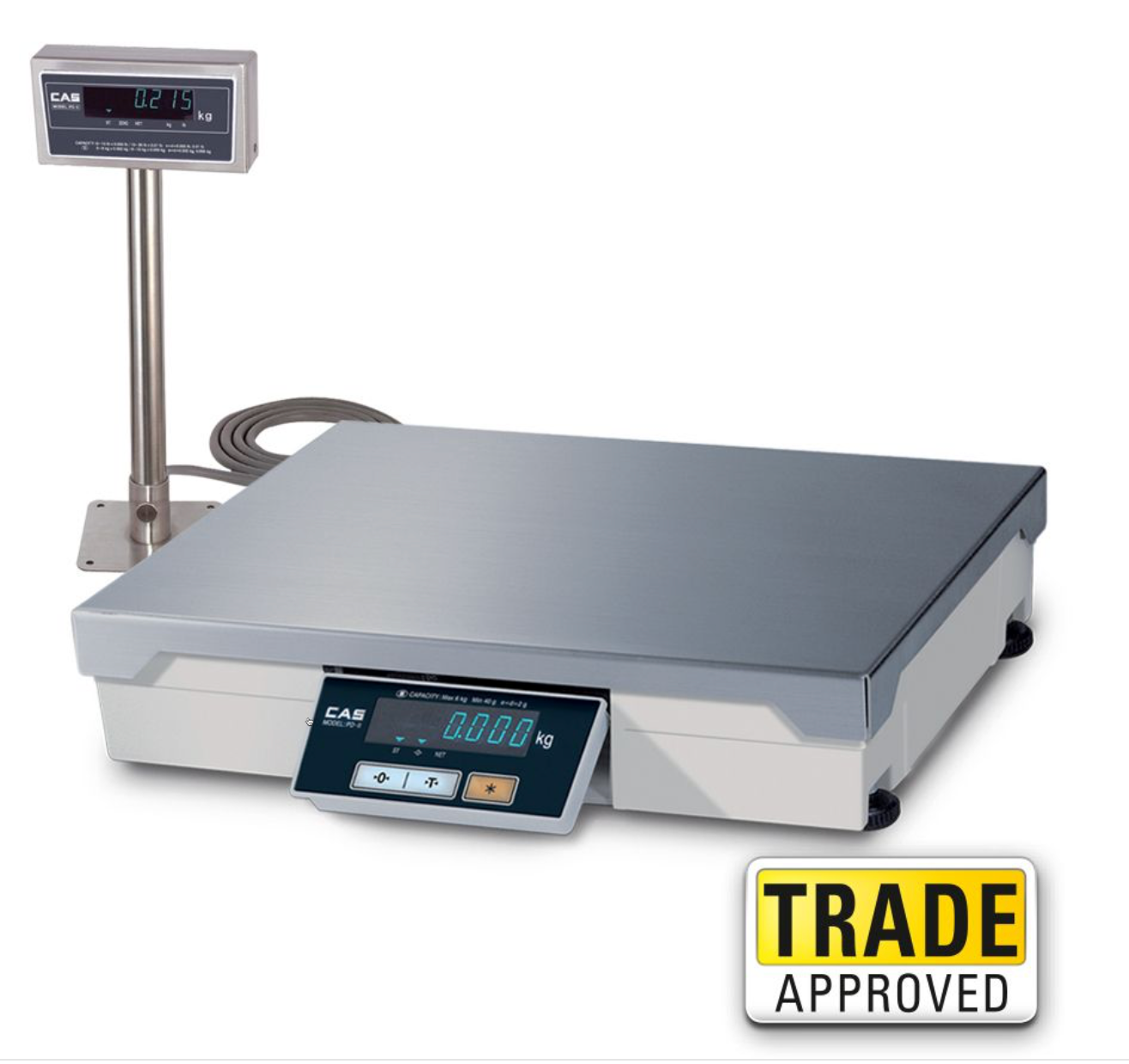

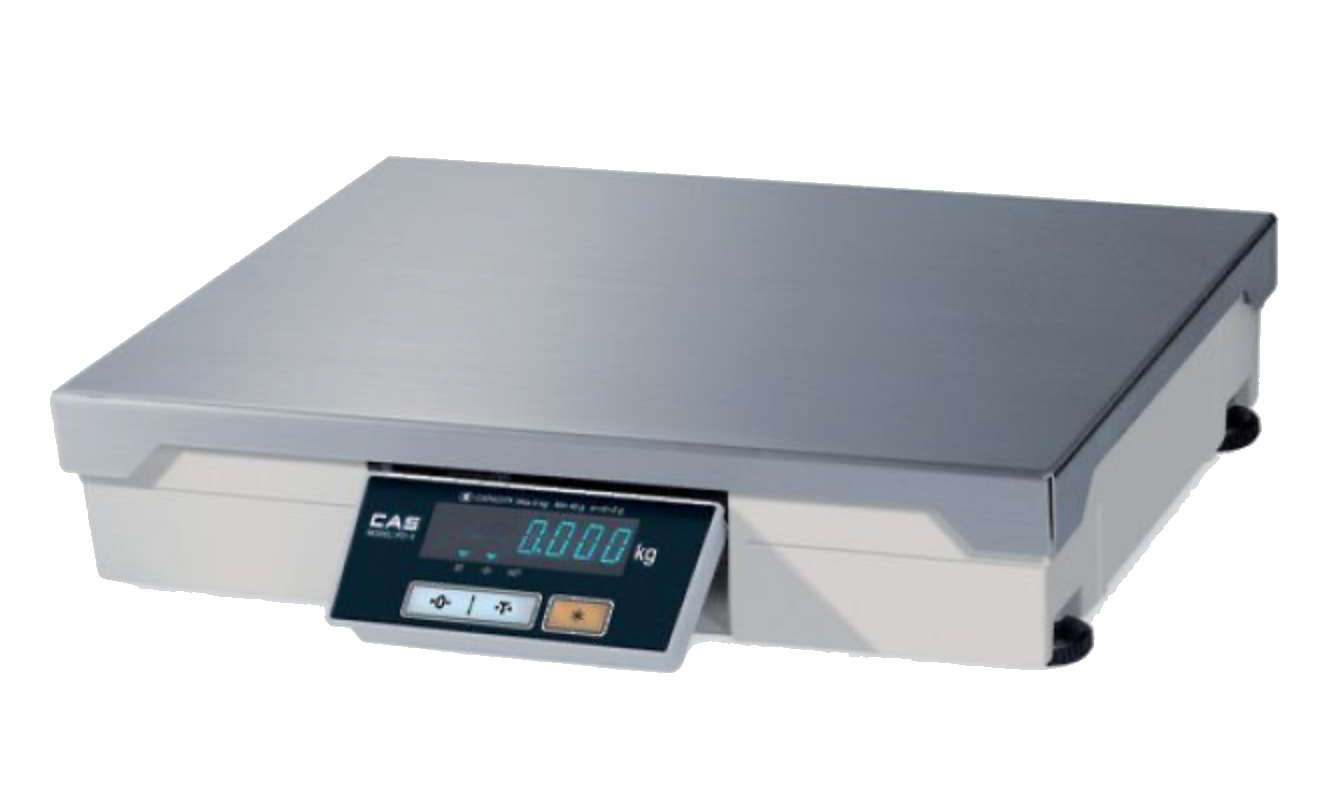

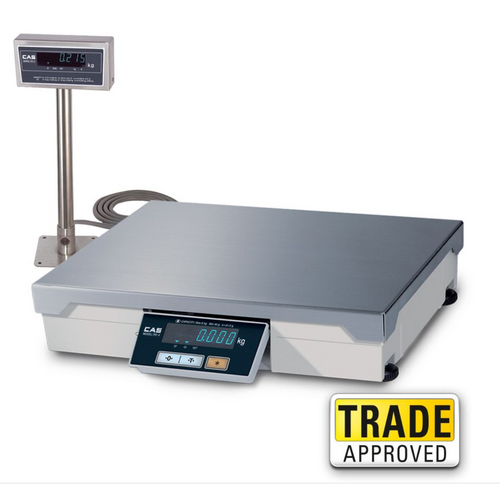

The CAS PD-II POS Interface Scale is a heavy-duty weigh only scale with interfacing capabilities which allows the scale to be connected to an Electronic Cash Register (ECR) or Point of Sale (POS) System. It has a large stainless steel platform and low profile, adjustable tilt display, optional remote VFD pole display and interface cables

It is ideal for retail environments such as supermarkets, parcel weighing, warehouses and logistics.

Features:

• Dual display included - Front and Side
• Easy-to-read & Adjustable VFD display
• Communication ports: RS-232C & Bit Parallel (ECR interface)
• Large Stainless Steel platter
• Low profile
• Trade Approved (NMI No. 6/4C/237)
• Needs to be stamped if products sold by weight (On site if connected to a POS system, or in our warehouse if not connected to a POS System)
• This product is non returnable, unless dead on arrival. In the rare event the scale is faulty, it will be repaired under a return to base warranty agreement.
• 12 Months Return to Base Warranty
• Minimum weight measurement for 6kg scale is 20 gram, for 15kg scale is 40 gram and for 30kg scale is 100 gram in accordance with Australian Regulations

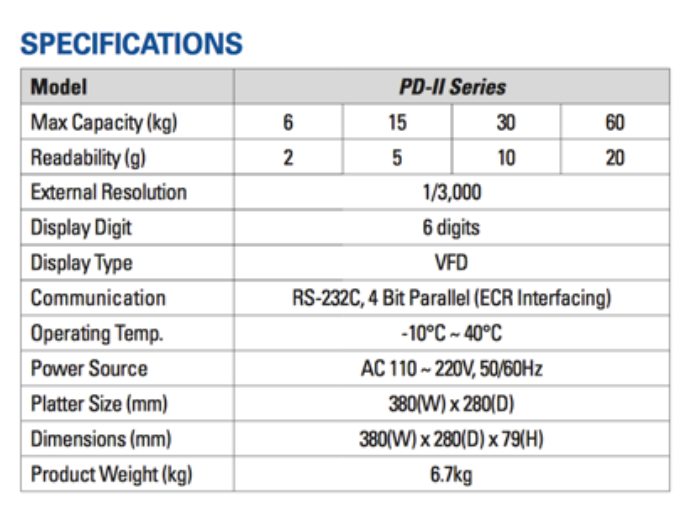

Capacity Options:

• 6kg Weight x 2g Accuracy
• 15kg Weight x 5g Accuracy
• 30kg Weight x 10g Accuracy
• 60kg Weight x 20g Accuracy

ECR Protocol Required:

• Only for 6kg Weight x 2g Accuracy Capacity Option
• See drop down options
• Software company should be able to conifm which protocol required

Options:

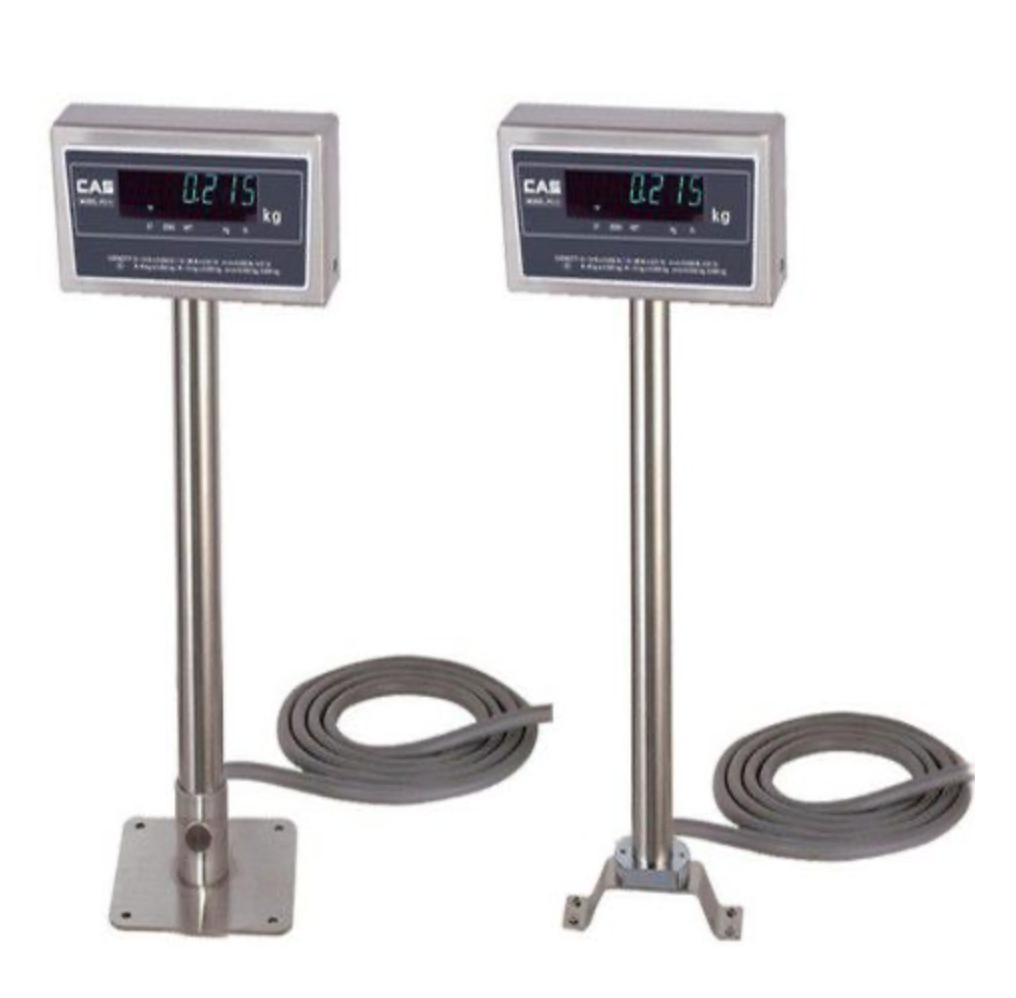

• Remote Pole Display C Channel
• Remote Pole Display Flat Base
• RS232 Cable for Communcition with PC / Register
• 2m Cable to Extend Side Display

PDN Scale vs PDII Scale:



PDN:

• Dual Range Weighing – 6/15kg Capacity with 2/5g readability
• Communication Ports: USB / Serial
• USB for Power
• PDN-R:  Remote Dual Display Option

PDII:

• Single Range Weighing
• Communication Ports: RS232C
• PII-R:  Remote Single Side Display Option (Flat base or C Channel Option)
