CAS PDN POS & ECR Checkout Weighing Scale

CAS PDN POS & ECR Checkout Weighing Scale with USB & Serial (RS232) Interface - Both Interface Cables are included.

Product Description:

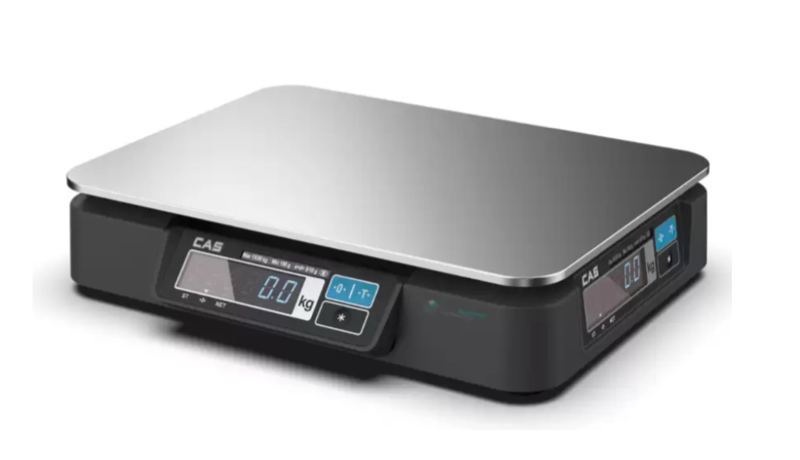

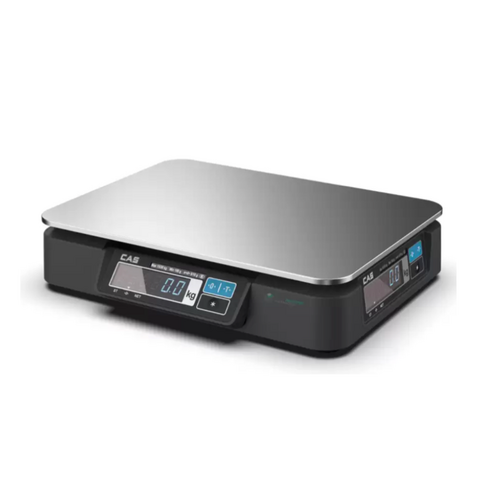

The CAS PDN is a digital weighing scale designed for point-of-sale (POS) and electronic cash register (ECR) checkout applications. It can be connected to a variety of devices through USB or RS232 serial interfaces, allowing for easy integration with existing systems.

Product Features:

• Tilt-able Front & Side Displays - LED 6 Digit
• Side display can be moved to rear of scale as alternative option
• Low Profile and Light-Weight Design
• Interface Options (RS-232, USB - Power & Coms)
• Optional Remote PDN-R Display which comes with Front & Rear Displays
• Optional Square Edge Tray (For flush bench installs)
• Simple Operation

Optional:

• Optional square tray allows PDN to have flush "built-in" look while using optional PDN-R remote dual display for customer viewing

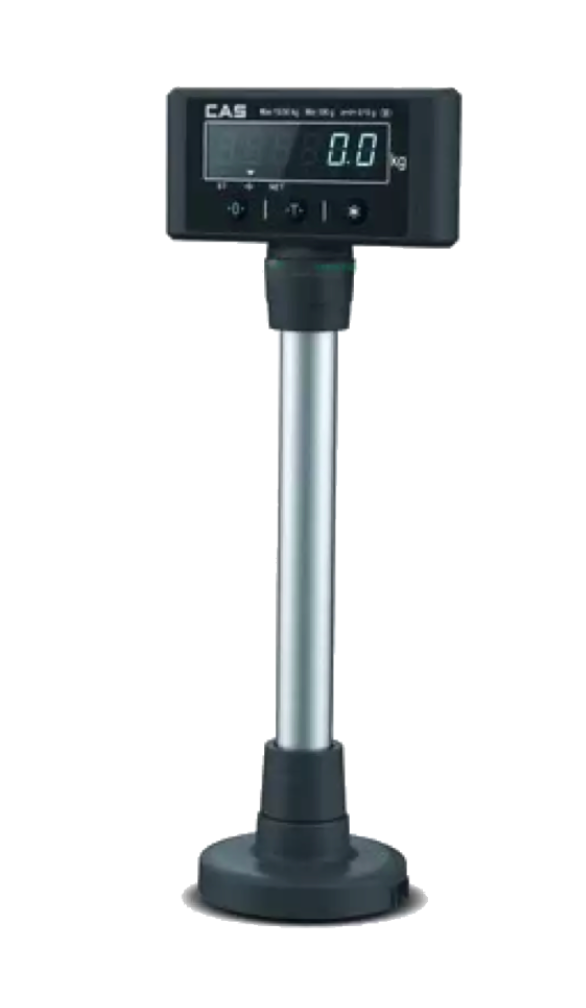

• PDN-R Remote Display Pole

Connectivity:

• The PDN can be connected to POS systems via RS-232C or USB
• The USB is also capable of powering the scale, reducing the number of cables required
• Trade Approved (Still requires on-site certification with your POS System - Not included.)

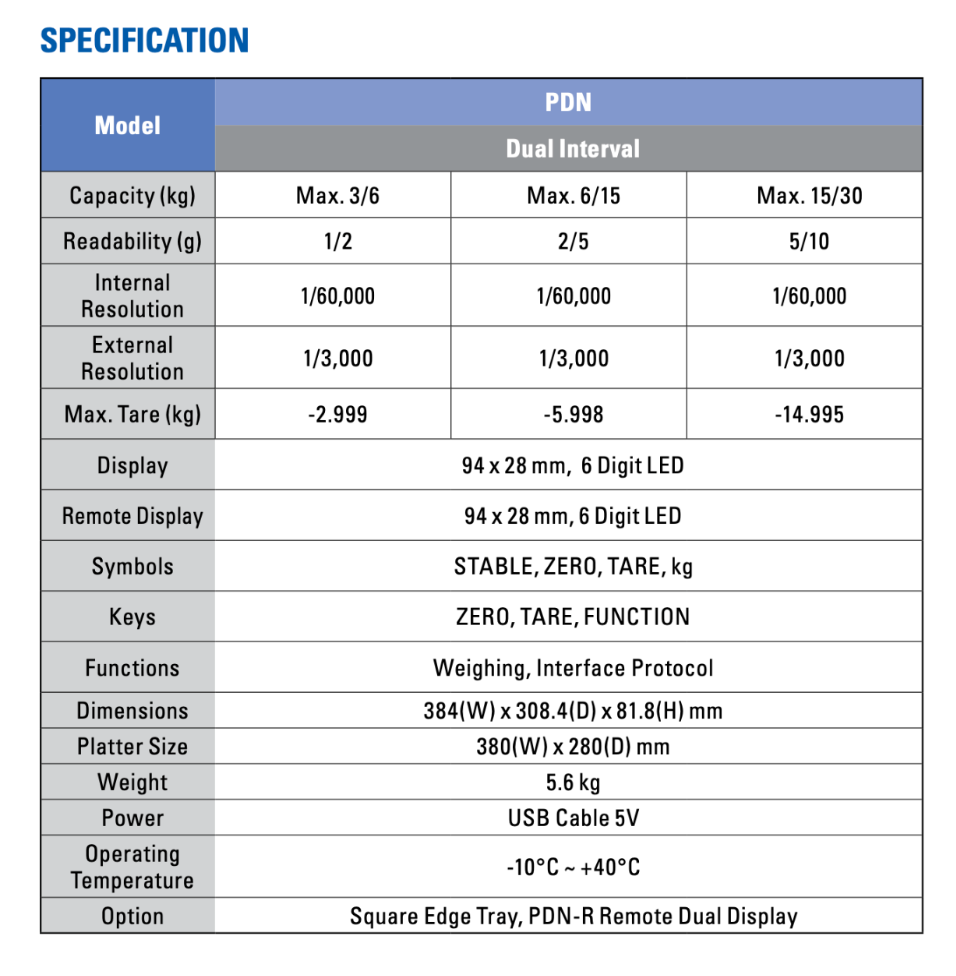

Specifications:

• Capacity – (3/6 Max.)/ (6/15 Max.) / ( 15/30 Max.)
• Readability(g) – (1/2) – (2/5) – (5/10)
• Internal Resolution – (1/60,000) / (1/60,000) / (1/60,000 )
• External Resolution – (1/3,000) /(1/3,000) / (1/3,000)
• Max. Tare (kg) – (2.999) / (5.998) / (14.995)
• Display – 94 x 28 mm, 6 Digit LED
• Remote Display – 94 x 28 mm, 6 Digit LED
• Symbols – STABLE, ZERO, TARE, kg
• Keys – ZERO, TARE, FUNCTION
• Functions – Weighing, Interface Protocol

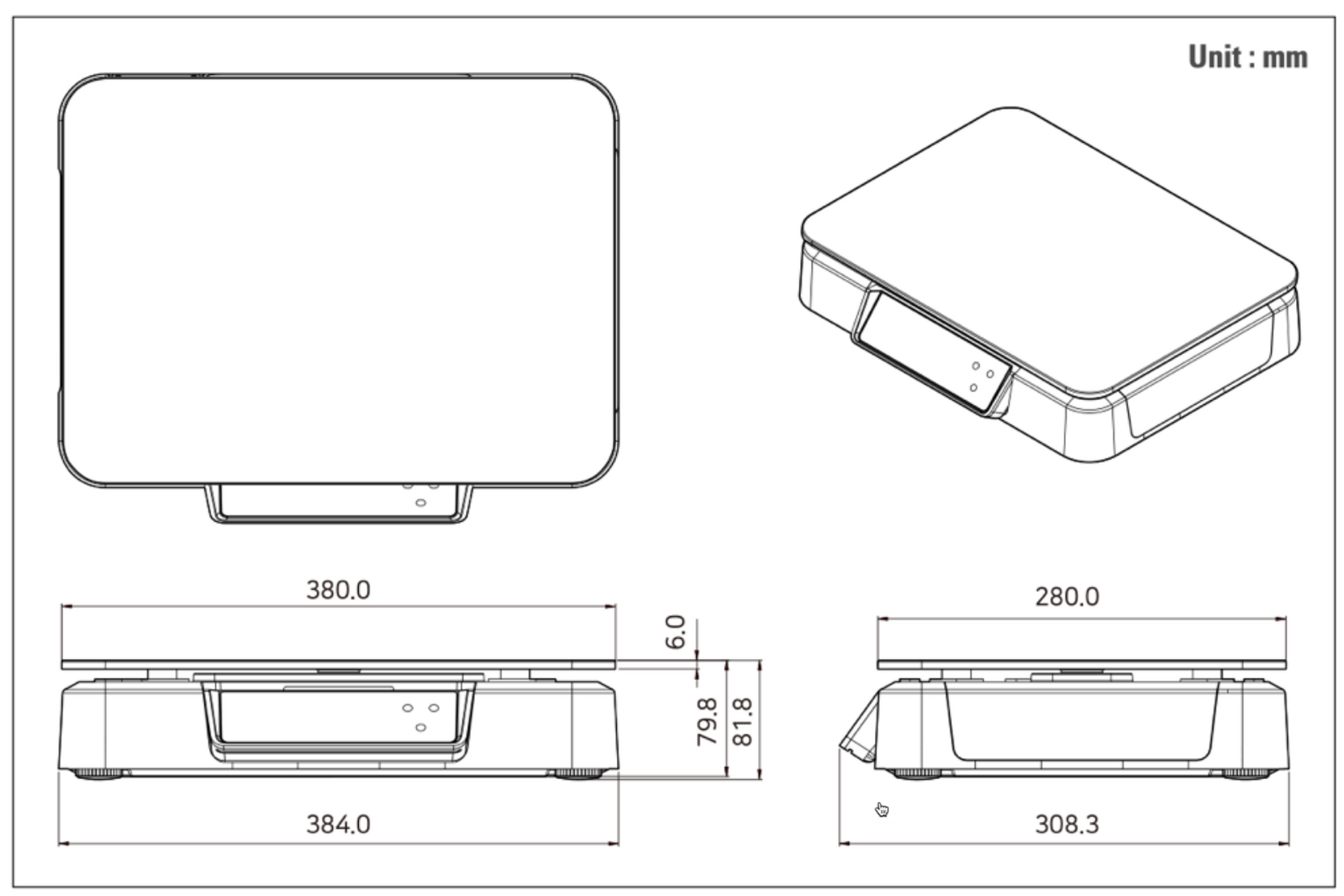

• Dimensions – 384(W) x 308.4(D) x 81.8(H) mm
• Platter Size – 380(W) x 280(D) mm
• Weight – 5.6 kg
• Power – USB Cable 5V
• Operating Temperature – 10 C ~ +40 C
• Option – Square Edge Tray, PDN-R Remote Dual Display
• Minimum weight measurement for 6kg scale is 20 gram, for 15kg scale is 40 gram and for 30kg scale is 100 gram in accordance with Australian Regulations



PDN Scale vs PDII Scale:



PDN:

• Dual Range Weighing – 6/15kg Capacity with 2/5g readability
• Communication Ports: USB / Serial
• USB for Power
• PDN-R:  Remote Dual Display Option

PDII:

• Single Range Weighing
• Communication Ports: RS232C
• PII-R:  Remote Single Side Display Option (Flat base or C Channel Option)
