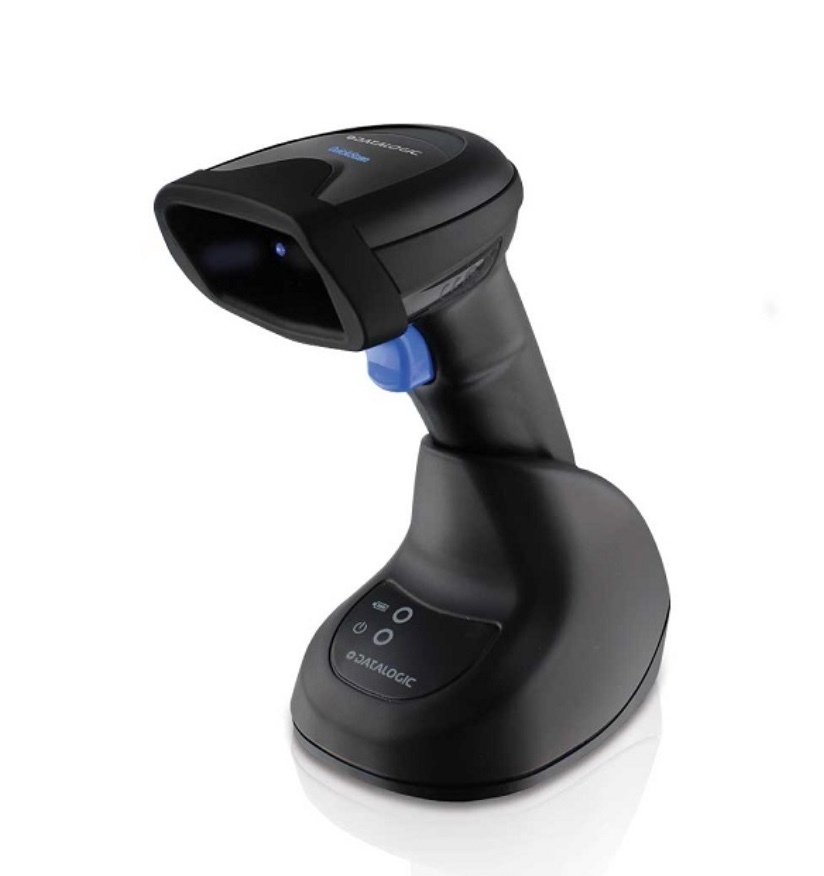

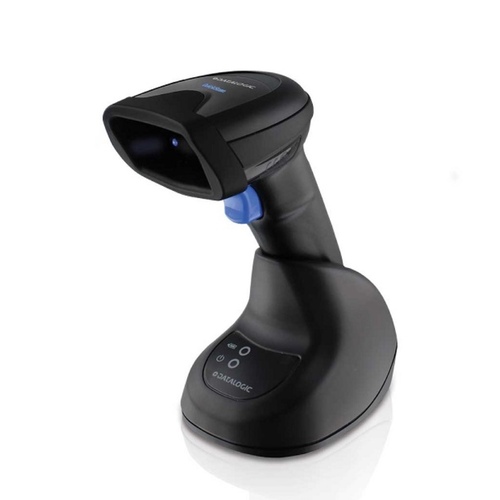

DATALOGIC Q/SCAN 2D QBT2500 Cordless Scanner Black USB Kit Bluetooth

The 2D Datalogic QuickScan ABT2500 effortlessly reads a full range of barcodes, be they damaged, hard to read, or poorly printed. In addition, with today’s Covid safeguards in place, the QuickScan 2500 imager is optimised to seamlessly read through plexiglass barriers. All of these must-have benefits are available at an incredibly affordable price.

Features:

• Choice of optics between 1 MP for superior scanning and Depth Of Field (QD, QM and QBT) and VGA (QW) for the extra-affordability
• 30 Meters Bluetooth range or use handsfree in cradle
• Datalogic LED-based technology with extreme precision aiming system
• Datalogic’s ‘Green Spot’ technology for superior good-read feedback
• Motionix patented motion-sensing technology for seamless reading mode transitions
• Omnidirectional reading for 1D, 2D, postal codes, stacked and composite bar codes, dot
• codes and Digital Watermark codes
• Choice of Bluetooth 4.0 wireless technology model or Datalogic’s STAR Cordless System
• (radio frequencies available in 433 MHz or 910 MHz)
• Multi-interface options: RS-232 / USB / Keyboard Wedge, including USB-C
• AladdinTM 3.0 configurator provides the latest GUI, search engines, and an on-line
• version that offers the ability to generate programming barcodes to scan directly on a
• smartphone
• EASEOFCARE Service Plans offer a wide range of service options to protect your
• investment, ensuring maximum productivity and ROI
• Replacement for QBT2430, QM2430, GM4200, GM4500

Applications:

• Retail - Point of Sale: Check-out, Loyalty card and Electronic coupons
• Commercial Services: Postal, Banks, Public Administration, Utilities
• Hospitality: Ticketing (sporting events, concerts, transportation)
• Government: Lottery and gaming
• Healthcare: Laboratories, Pharmacies and in-room
• patient care
• Light Manufacturing: Work-in-progress (WIP

QuickScan QBT2500

• Bluetooth Wireless Technology
• Profiles: SPP (Serial Port Profile); Protocol: Bluetooth 4.0 Certified Class 1; Radio Frequency: 2.4 GHz; Radio Range (Open Air): 50.0 m / 164 ft; Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results. Security: Data Encryption; Scanner Authentication

Battery:

• Battery Type: Lithium-Ion: 3250 mAh
• Charge Time (Scanner only): Type-C External Power: 3 Hours; Charge Time (via Cradle): External Power: 4 Hours @ 12 VDC; Reads per Charge: 115,000

Decoding Capabilities:

• 1D/Linear: Auto discriminates all standard 1D codes including GS1 DataBarTM linear codes
• 2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
• Postal Codes: Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
• Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
• Digital Watermarking: Digimarc Barcodes (QD2500, QM2500, QBT2500 only)

Typical Depth of Field:

• QD2500, QM2500, QBT2500:
• Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in
• Code 39: 10 mils: 0.5 to 38.0 cm / 0.2 to 14.9 in Data Matrix: 10 mils: 0.5 to 21.5 cm / 0.2 to 8.5 in EAN/UPCA: 13 mils: 0.5 to 51.0 cm / 0.2 to 20.1in PDF417: 6.7 mils: 0.5 to 21.0 cm / 0.2 to 8.3 in
• QR Code: 20 mils: 0 to 37.0 cm / 0 to 14.6 in QW2500:
• Code 39: 5 mils: 0.5 to 23.0 cm / 0.2 to 9.0 in
• Code 39: 10 mils: 0.5 to 37.0 cm / 0.2 to 14.5 in Data Matrix: 10 mils: 1.0 to 15.5 cm / 0.39 to 6.1 in EAN/UPCA: 13 mils: 1.0 to 40.0 cm / 0.39 to 15.7 in PDF417: 6.7 mils: 0.5 to 13.5 cm / 0.2 to 5.3 in
• QR Code: 20 mils: 1.0 to 33.0 cm / 0.39 to 12.9 in
