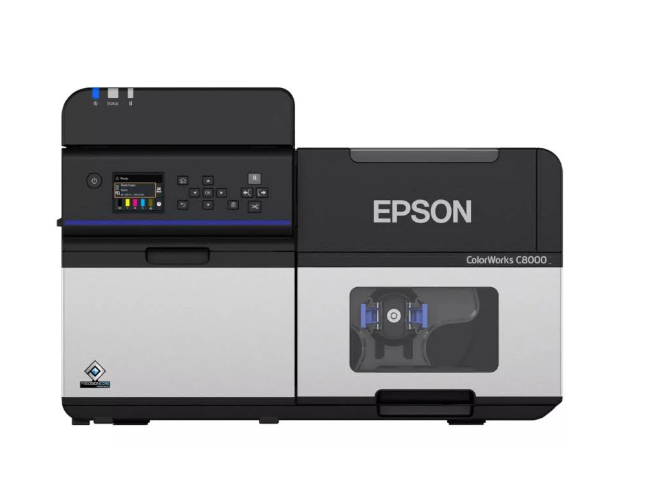

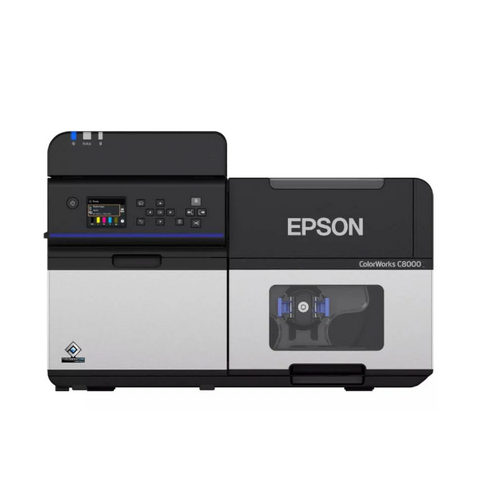

EPSON ColorWorks CW-C8010 Inkjet Colour Label Printer C31CL02108

Epson CW-C8010 ColorWorks 4 inch wide Colour Label Printer

Replaces the TM-C7500 Printer

Industrial colour label printer with media flexibility expanded media support. Label widths from 25mm to 112mm. Compact and simple, unobtrusive design with front panel operation.

The C8010 has excellent reliability and endurance PrecisionCore printhead for consistent results and long printer lifetime, and saves time and money

Streamline your label production by printing your colour labels on-demand with high speed & high print quality print speeds of up to 300mm/sec, at image resolution of 600x1200dpi

Low maintenance, reduced downtime Permanent printhead and NVT for self-maintenance with easy integration ESC/Label programming language for integration with virtually any OS.

Ink pouches Large ink pouches to print longer without stopping the print job.

Epson will provide security updates for 7 years from purchase.

Printer:

• Print Method: Line inkjet, dot matrix
• Print Resolution: 600 dpi x 1200 dpi
• Print Speed: Up to 11.8" per second (300 mm/sec)
• Colour Adjustment: Epson Preferred Color, Epson Standard, Epson Vivid Colour
• Media Dispense Type: Auto cutter (scissor type), up to 1.5million cuts
• Printhead: PrecisionCore printhead, permanent
• Paper-Feeding Mechanism Life: 500 km

Ink:

• Ink Type: UltraChrome DL SJIC48P pigment ink
• Ink Colors: Cyan, Magenta, Yellow and Black (Gloss or Matte Black Options)
• Ink Pack: Configuration Four (4) individual ink packs, 480 mL each pack2
• This printer is designed for use with genuine Epson packs only, not third-party packs or ink

Media:

• Supported Media Types: Die-Cut Label, Full-Page Label, Continuous Label, Tag
• Supported Media Constructions: Plain Paper, Textured Paper, Matte Paper, Synthetic, Glossy Paper, Glossy Film, High Glossy Paper, Die-Cut Labels
• Label Gap 0.12" – 0.24" (3 mm – 6 mm)
• Gap Sensor Position: Adjustable; 0.12" – 2.20" (3 mm – 56 mm) from left side; pitch: 0.04" (1 mm)
• Black Mark Sensor Positio:n Fixed position; approximately 0.49" (12.4 mm ) from left
• Black Mark: Width 0.75" (19 mm) or more from paper edge
• Black Mark Length: 0.16" to 1.0" (4 mm – 25.4 mm) with 0.16"
• (4 mm) or more of white space around the black mark
• Maximum Print Width 4.25" (108 mm)
• Media Width: Internal Roll Media (Min. – Max.): 1.0" – 4.40" (25.4 mm – 112 mm)
• External Roll Media, Fanfold (Min. – Max.): 1.97" – 4.40" (50 mm – 112 mm)
• Media Length: (Min. – Max.): 0.31" – 40", (8 mm – 1,016 mm)
• Media Thickness: (Min. – Max.): 3.30 mils – 23.62 mils
• (0.084 mm – 0.600 mm)
• Internal Roll Media
• Media Core Inner Diameter: 3.0" (76.2 mm)
• Media Maximum Outer Diameter: 8.0" (203.2 mm)

Cartridges and Accessories:

• C13T55P140 – Gloss Black Ink Pack
• C13T55P540 – Matte Black Ink Pack
• C13T55P240 – Cyan Ink Pack
• C13T55P340 – Magenta Ink Pack
• C13T55P440 – Yellow Ink Pack
• C33S020596 – Maintenance Box for C7500, C8000
• C32C882501 – Take up Unit

Gloss or Matte Ink:

• Printer ships as default with GLOSS INK / GLOSS Model
• Please Note that you can only select Gloss or Matte printer settings at initial printer set-up
• Example: Once a printer is chosen as Gloss device it will permanently remain as this type selected
• Email POS99 in advance if Matte is required as a different printer model is required

When is MATTE ink required:

• Required to print on solvent or chemical labels
• Solvent/chemical labelling is, more often that not, done on matte label stock
• The matte black ink produces much sharper barcodes than gloss black ink would on matte media would (and barcodes on solvent/chemical labelling are extremely important for accuracy)
• Once a printer is commissioned with matte ink , it can not be changed back to gloss
