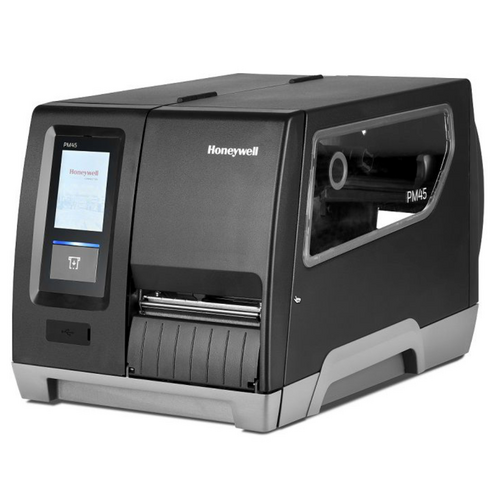

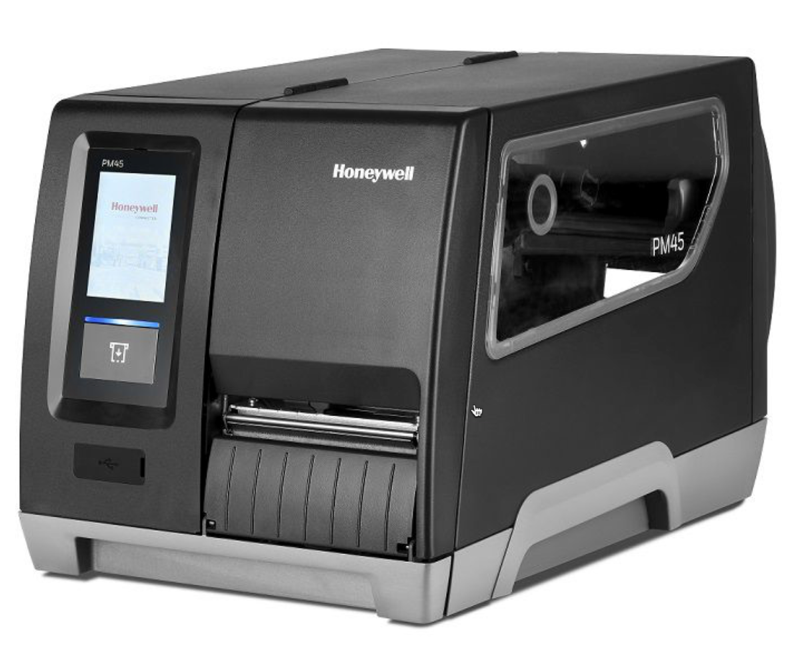

Honeywell Label Printer PM45A Thermal Transfer Touch Screen

The Honeywell PM45 series industrial printer is designed for high quality label printing in harsh industrial environments. The WWAN connective printer enables 24/7 data communication and real-time visibility of critical data from a wide range of locations.

Features

• Accurate & reliable high speed printing
• Broad connectivity options
• Common Honeywell Cyber Security Software Platfgorm provides security updates throughout lifecycle
• Offers scalable and upgradable solution to minimise any future business constraints
• First industrial printer with WWAN connectivity designed for M2M and IoT applications
• Operational Intelligence MDM tool provides predictive analytics and data on printer health
• SOTI and PrintSet MC are also supported
• Smart printing capability allows users to configure and print without the need for a host computer
• Replacing PM43A
• Replacing DATAMAX M-4206 MKII and Honeywell PM43A
• 12 Month Warranty

Compatible Software:

• BarTender
• Nicelabel
• Operational Intelligence
• Teklynx Labelview

Compatible Drivers:

• CUPS Driver for Linux
• Certified Device Types for SAP
• InterDriver Windows

Specifications:

• Dimensions: L x H x W: 483mm x 295mm x 284mm (19.0 in x 11.11.6 in x 11.2 in)
• Weight: 13.2 kg (29.1lbs)
• Maximum Print Width at 203 dpi: 108 mm (4.25 in)
• Maximum Printt Width at 300 dpi: 105.7 mm (4.17 in)
• Maximum Print Length at 203 dpi: 4.8 m (189 in)
• Maximum Print Llength at 300 dpi: 2.2m (85in)
• WLAN: IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1x1 SISO
• Print Speed: At 203 dpi: 50-350 mm/s (2-14ips)
• Print Speed: At 300 dpi: 50-300 mm/s (2-12ips)
• Interface: Standard:Ethernet 10/100/1000 Mbps, USB 2.0 Host (x2 PM45, x1 PM45C), USB 2.0 Device, RS-232, up to 115.2 KB/s
• Replacement for Honeywell DATAMAX M-4206 MKII 4 Inch Industrial Label Printer now obsolete

Optional Rewinders: - 8 - 12 Week Lead TIme since Order Placement:

Full Batch:

• Internal Rewinder
• Rewind label + Liner
• Take whole roll from printer and peel labels off as needed

Liner Take-Up / Peel and Present / Fixed Hanger Rewinder:

• Internal Rewinder
• Rewinds only liner into roll
• Print label, remove or peel printed label
• Internal rewinder rewinds liner back

Optonal Extended Warranty:

PM45, EDGE, GOLD, 5DAY, 3YR, NEW

GOLD CONTRACT
The most flexible contract in the industry. The Edge Services Gold Support contract allows you to select the right coverage for your organization, and includes 5-Day Depot Repairs, 48-hour onsite response time, and:
- Repair or replacement of damaged components
- Flexibility to add any Add-On Service

General Add-Ons
- Full Comprehensive Upgrade
- Battery Refresh
- Managed Spare Pool
- Accessory Coverage
- Service SLA Upgrade
- Hardware Configuration

Mobile Computer Add-Ons
- Sentinel Service
- Device Imaging

Printer Add-Ons
- Onsite Repairs
- Printhead Refresh
- Cutter Replacement
- Scheduled Preventive Maintenance
