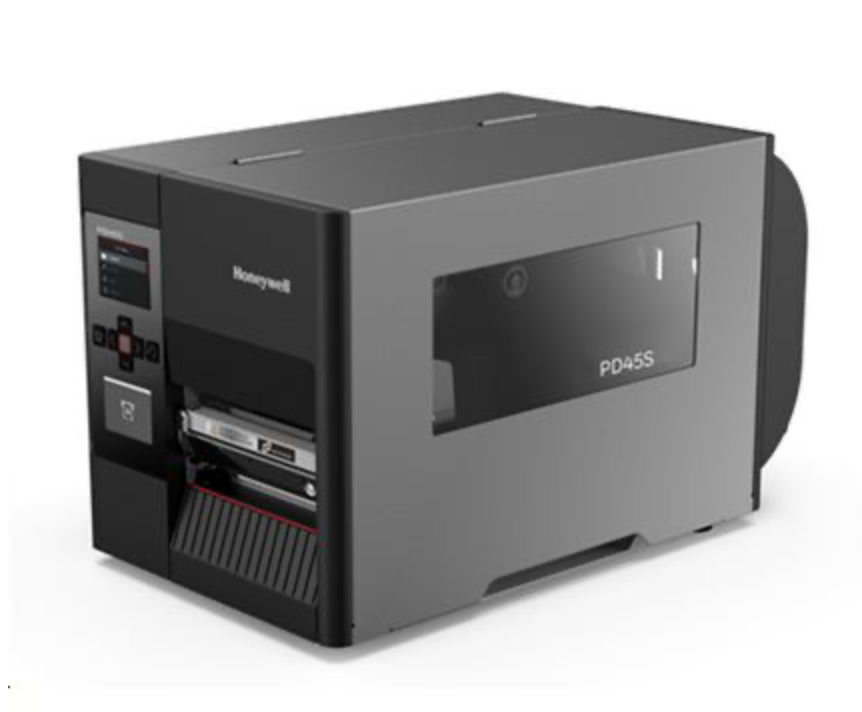

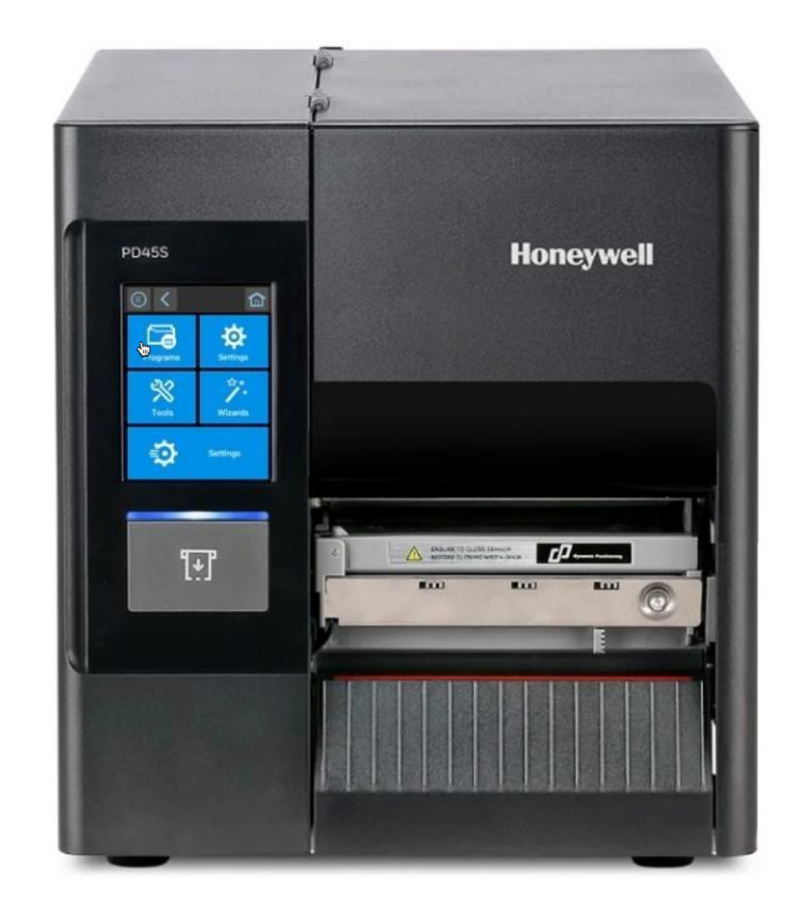

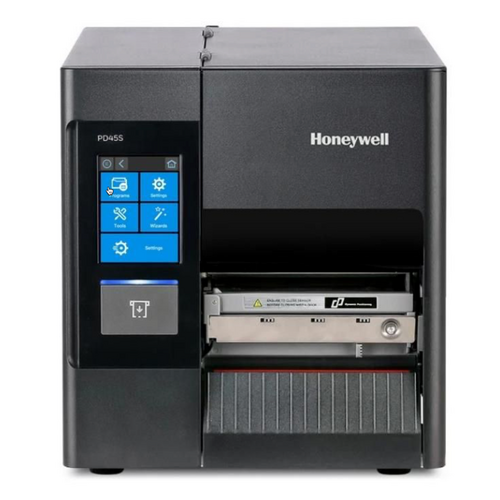

Honeywell Thermal Transfer Label Printer PD45S Ethernet, USB, Serial

Honeywell Thermal Transfer Label Printer PD45S 203DPI ETH

Select Model from the dropdown list:

• ETH USB Serial 203dpi
• ETH USB Serial 300dpi
• ETH USB Serial 203dpi Label Taken Option

Included In Box: Honeywell PD45S, 2.36 inch Display with Keypad, Ethernet, Fixed Hanger, Thermal Transfer (TT), No Power Cord

Compatible Software:

• Operational Intelligence
• PrintSet

Printer Specifications include:

• Direct Thermal / Thermal Transfer printing technology
• Base model - 203DPI print resolution - Other options avialble
• Print Speed - 203 dpi: 50 - 250 mm/s (2-10 ips) 300 dpi: 50 - 200 mm/s (2-8 ips)
• Prints Major 1D and 2D codees
• Easy to operate one-key driver installation and facilitating printer cleaning and parts replacement
• Rugged and Durable - Suitable for a large variety of working environments with all-metal frame structure
• Patented Dual-sensor Positioning Technology
• Ensuring the minimum width of 5mm and the position accuracy of ±0.5mm with the dynamic positioning function
• Excellent performance
• Advanced industrial print head ensures high printing quality and durable
• Complete after-sales services
• Honeywell Global Service Support can provide customers and partners with the best support and visiting service in the industry
• Honeywell’s services can improve the production efficiency, equipment reliability and uptime indicators
• Dimensions: (L x H x W): 438 mm x 270 mm x 249 mm (17.24 in x 10.63 in x 9.80 in)
• Replacement for Honeywell PM42 and Datamark M-Class M-4206
• Optional Peeler Presenter - Label Taken Optional
• 12 Month Standard Honeywell Return to Base Warranty

Media:

• Ribbon Core Width - 110/51 mm (4.33/2.0 inches)
• Media Width Maximum - 114mm (4.5in)
• Media Width Minimum - 20mm, 0.79in
• Printer Media Type - tag paper, black label paper, guide hole paper, notch paper or continuous label paper, Non-continuous label paper
• Media Thickness - 3 mil to 10 mil (0.076mm to 0.255mm)

Applications:

• Health Care
• Retail
• Manufacturing
• Transportation & Logistics



Drivers:

• InterDriver Windows printer drive and one-key installation driver
• CUPS driver for Linux
• Program packages for Honeywell device type for SAP and Honeywell label design and printing



Character Sets:

• English, Italian, French, Spanish, Portuguese, German, Russian, Traditional Chinese, Simplified Chinese, Korean, Japanese and Thai



Communications Protocol:

• (Optional) Industrial interface: 8-bit INPUT/output, 4 analog signal relays and 1 RS-232/422/485 port
• IPL: XON/XOFF, Honeywell Std. Protocol
• (Optional) Dual serial ports: RS-232, RS-422 and RS-485, and 20 mA current loop, GPIO card
• (Optional) Parallel port: IEEE 1284
• (Optional) WIFI: IEEE 802.11 a/b/g/n/ac, Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (THIP/CCKM Personal and Enterprise, WPA2 (AES-CCMP/CCKM Personal and Enterprise)
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, RTS/CTS

Extended Warranty Options:



Option 1:



HONEYWELL PD45S, EDGE, GOLD, 5DAY, 3YR, NEW

GOLD CONTRACT
The most flexible contract in the industry. The Edge Services Gold Support contract allows you to select the right coverage for your organization, and includes 5-Day Depot Repairs, 48-hour onsite response time, and:
- Repair or replacement of damaged components
- Flexibility to add any Add-On Service

General Add-Ons
- Full Comprehensive Upgrade
- Battery Refresh
- Managed Spare Pool
- Accessory Coverage
- Service SLA Upgrade
- Hardware Configuration

Mobile Computer Add-Ons
- Sentinel Service
- Device Imaging

Printer Add-Ons
- Onsite Repairs
- Printhead Refresh
- Cutter Replacement
- Scheduled Preventive Maintenance



Option 2:

HONEYWELL PD45S, EDGE, GOLD, 5DAY, 5YR, NEW

GOLD CONTRACT
The most flexible contract in the industry. The Edge Services Gold Support contract allows you to select the right coverage for your organization, and includes 5-Day Depot Repairs, 48-hour onsite response time, and:
- Repair or replacement of damaged components
- Flexibility to add any Add-On Service

General Add-Ons
- Full Comprehensive Upgrade
- Battery Refresh
- Managed Spare Pool
- Accessory Coverage
- Service SLA Upgrade
- Hardware Configuration

Mobile Computer Add-Ons
- Sentinel Service
- Device Imaging

Printer Add-Ons
- Onsite Repairs
- Printhead Refresh
- Cutter Replacement
- Scheduled Preventive Maintenance



Option 3:

HONEYWELL PD45S, EDGE, PLATINUM, 2DAY, 3YR, NEW

PLATINUM CONTRACT
The Edge Services Platinum Support contract is the only total support contract in the industry today offering 2-Day Depot Repairs or Spare Pool Management with 3 or 5-year contracts, and includes:

- Repair or replacement of damaged components
- Replacement devices should a device be damaged beyond repair
- Accessory replacement service
- Battery replacement service
- Operational Intelligence licenses
- Printer consumables management
- Spare pool management
- Technical support



Option 4:

HONEYWELL PD45S, EDGE, PLATINUM, 2DAY, 5YR, NEW

PLATINUM CONTRACT
The Edge Services Platinum Support contract is the only total support contract in the industry today offering 2-Day Depot Repairs or Spare Pool Management with 3 or 5-year contracts, and includes:

- Repair or replacement of damaged components
- Replacement devices should a device be damaged beyond repair
- Accessory replacement service
- Battery replacement service
- Operational Intelligence licenses
- Printer consumables management
- Spare pool management
- Technical support





PD45S0C0010000200  PD45S0C0010020200
