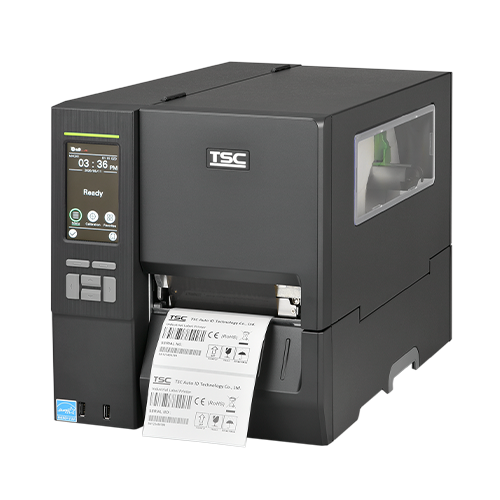

TSC MH241 / MH621 Industrial Thermal Transfer Label Printer 203dpi Touch LCD USB/SER/ETH

TSC's MH241 and MH261 die-cast aluminium label printers are designed to meet the most demanding bar-coding and identification requirements offering more standard features than any comparable printer at a very affordable price.

The MH241T and MH241P can easily adjust the media near-end sensor to detect the media and remind users to change the media roll on color GUI display (Media near the end). The MH241 series allows users to easily replace printhead and platen roller without the need for specific tools.

Seelct model from drop down list:

• Option 1 - MH241 203dpi 3.5" Non Touch LCD USB/SER/ETH
• Option 2 - MH241T 203dpi 4.3" Touch LCD USB/SER/ETH
• Option 3 - MH261T 600pi 4.3" Touch LCD USB/SER/ETH

Sophisticated TSC Sense Care

• Self-diagnostic TPH Care mechanism
• Near real-time information and updates for preventative actions
• Selectable media sensor settings

Dynamic Remote Printer Multi-Connectivity Management

• Supports SOTI Connect through either Ethernet or Wi-Fi
• Powerful TSC Console for printer management

Highly Adaptable:

• Precise peel-off capability with 0.5” minimum label length (MH241 Series).
• Supports media width up to 6.8” (MH261 Series)
• Full mechanism for fine adjustment

Brilliant User Experience

• Media near end sensor detection
• Easy printhead and platen roller replacement

Specifications:

• Print Resolution - MH241 203dpi - MH621 600dpi
• T model has Touch LCD, Non T model has Non Touch LCD
• Thermal Trasnfer and Direct Thermal
• Print Speed - MH241: 356 mm (14”)/second, MH261: 152 mm (6”)/second
• Maximum Print Wdith: 104 mm (4.09”)
• Maximum Print Lenghth: 25,400 mm (1000”)
• Die-cast print mechanism and base with bi-fold metal cover with large clear media view window
• DImensions: 276 mm (W) x 326 mm (H) x 502 mm (D) 10.87” (W) x 12.83” (H) x 19.76” (D)
• Weight: 15.6kg
• Label Roll Capacity: 203.2 mm (8”) O.D. on 38mm or 76mm Core
• Ribbon: 600 m long, max. O.D. 90 mm, 1” core (ink coated outside or inside)
• Ribbon width: 25.4 mm ~ 114.3 mm (1” ~ 4.5”)
• Media type: Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound)
• Processor: 32-bit RISC CPU
• LCD: 3.5” Non Touch color display, 320 x 240 pixel, T models has 4.3" Touch colour display
• 24 Months Warranty
• Bartender Ultra Software Included - User Friendly

Memory:

• 512MB Flash memory
• 256MB SDRAM
• microSD Flash memory card reader for Flash memory expansion, up to 32 GB

Communication:

• RS-232
• USB 2.0 (High speed mode)
• Internal Ethernet, 10/100 Mbps
• USB host *2 (Front side), for scanner or PC keyboard
• GPIO (DB15F) + Centronics (optional)
• Internal Bluetooth 5.0 MFi (optional)
• Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (optional)

Applications:

• Manufacturing - Industrial Printing, Shipping/Receiving Labeling, Warning/Caution Signage
• Transportation - Pallet Labeling, Distribution
• Healthcare - Pharmaceutical Labeling, Asset Tracking
