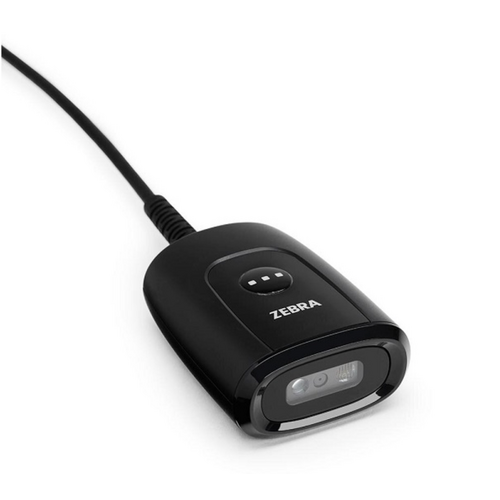

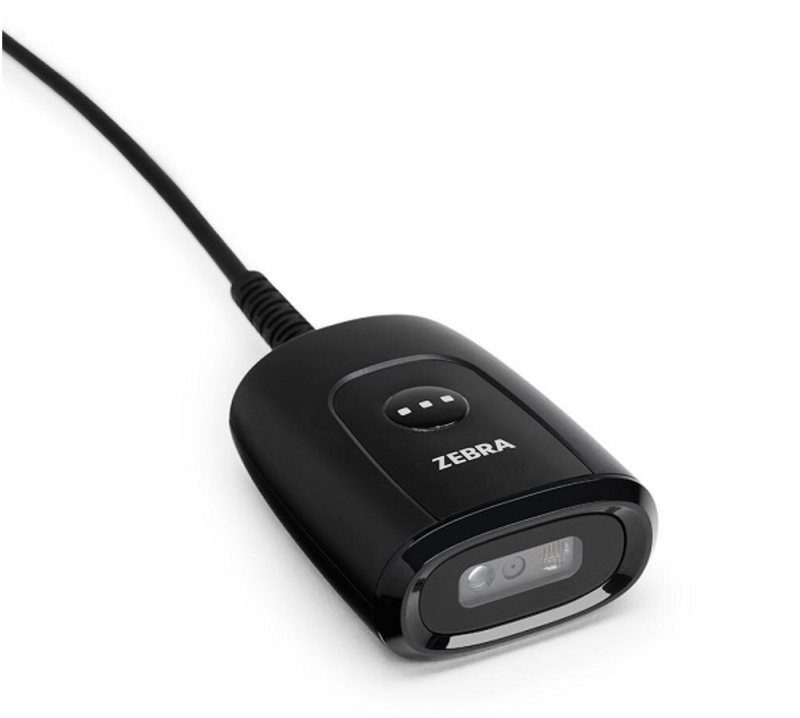

Zebra Fixed Mount Scanner DS5502 2D-SR-SR USB Optional Bracket DS5502-SR4US70MAZW

$595.00
In Stock

Available Options


Calculate Shipping

DS5502: Area Imager, Standard Range, Corded, White Illumination, Midnight Black

 Zebra’s industry-leading performance ensures flawless high-volume scanning of any 1D and 2D barcode, including mobile barcodes on customer phones.

Features:

  • Engineered to Read Virtually Any Barcode - 1D, 2D, OCR, scans off mobile phones
  • Enhanced performance on mobile barcodes, including those on dimly lit screens, ensures that customer’s electronic tickets, boarding passes, loyalty cards and coupons
  • Fits in the Smallest of Spaces
  • Easy Integration into Self-Service Solutions
  • Self-service kiosks, contactless pickup lockers, buy online pickup in store (BOPIS) kiosks, lottery terminals, ticketing kiosks and more
  • All the Cables You Need
  • Including 2 ft (0.6m) and 7 ft (2.1m), straight and right-angle connectors
  • Feedback You Can Hear in Any Environment, good decode LEDs and an adjustable beeper
  • Instantly Capture and Process Driver’s License Data
  • Capture OCR, Images and Documents
  • Designed to Survive Spills and Drops
  • 3 Year RTB Warranty
  • Easy Application Development
  • Multi-Interface Flexibility
  • Make Data-Driven Decisions Informed by Your Scanners
  • Up-to-the-Minute Insight into Every Aspect of Your Scanners
  • Zebra DNA — Set Up. Secure. Manage. Optimise

Specifications:

  • Swipe Speed - Hands Free: Up to 100 in (254cm) per second for 13 mil UPC in optimized mode
  • 1.2 in H x 2.2 in W x 2.8 in D - (3.0cm H x 5.6cm W x 7.2cm D)
  • Weight: 2.3 oz (65.2g)
  • Input Voltage: 4.75 to 5.25 VDC Host Powered; 4.75 to 5.25 VDC External Power Supply
  • Operating Current: Presentation Mode: 360 mA RMS (Typical), Trigger Mode: 350 mA RMS (Typical)
  • Standby Current: Presentation Mode: 185 mA RMS (Typical), Trigger Mode: 155 mA RMS (Typical)
  • Image Sensor: 1280 x 800 pixels
  • Aiming Pattern: Circular 525 nm True Green LED
  • Illumination: Warm White LED
  • Imager view of Field: 48° H x 30° V nominal
  • Minimum Print Contrast: 15% minimum reflective difference
  • Skew, Pitch Tolerance: +/- 60°
  • Roll Tolerance: 0°-360°







(DS5502-SR4US70MAZW)

SKU DS5502-SR4US70MAZW
Brand Datalogic
