ZEBRA Scanner Kit LI3678 BT 1D-ER USB FIPS Black LI3678-ER3U42A0S1W

ZEBRA Scanner Kit LI3678 BT 1D-ER USB FIPS Black (Replacement for LS3578)

Workers get lightning fast capture of any 1D barcode in virtually any condition, a design that is practically indestructible, plus unrivaled manageability that makes staging and everyday management easier than ever. Super fast capture of any 1D barcode displayed on screens or printed in virtually any condition, nearer and farther than any scanner in this class — from 2 in./5.1 cm to as far as 56 ft./17.1 m away.

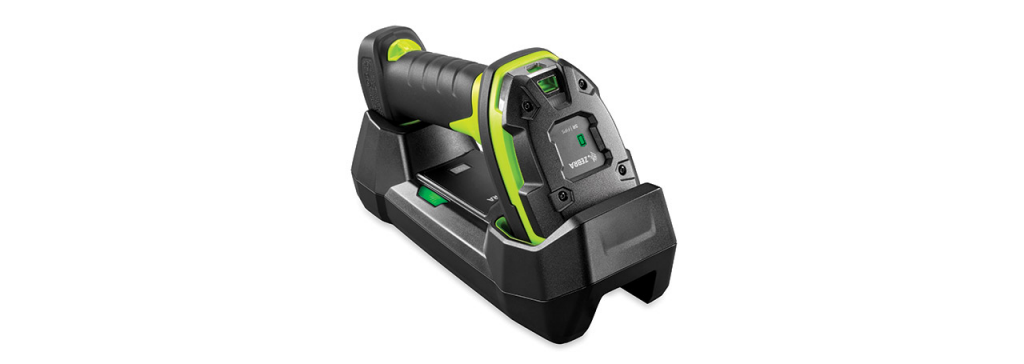

ZEBRA Scanner Kit LI3678 BT 1D-ER USB FIPS Black (Replacement for LS3578) LI3678-ER Rugged FIPS Standard Cradle USB (NO LINE CORD) KIT: LI3678-ER2F003VZWW Scanner, CBA-U42-S07PAR SHIELDED USB Cable, STB3678-C100F3WW Cradle, PWR-BGA12V50W0WW P/S, CBL-DC-451A1-01 DC Cord, A/C Cord Not Included - Add CAIEC power cable.

Features:

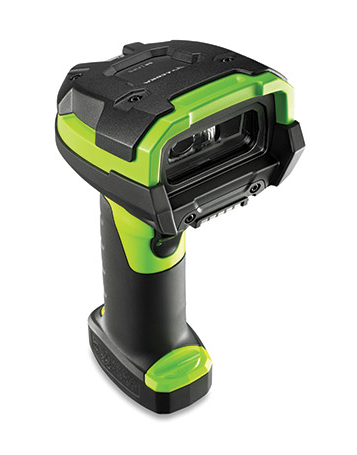

• Cordless 1D Linear Imager - Designed for near-range reading of 1D barcodes
• Extended Range
• Replacement for LI3578
• Ideal for shipping and receiving on oading docks, small item pick and pack and manufacturing work-in-process
• Scans off screens or printed in virtually any condition
• Nearer and farther than any scanner in this class — from 2 in./5.1 cm to as far as 56 ft./17.1 m away
• Highest drop specification for any rugged scanner - 2.4 m to drops to concrete, 23% more durable than competitive devices
• Highest tumble specification for any rugged scanner - works even after 5,000 consecutive tumbles

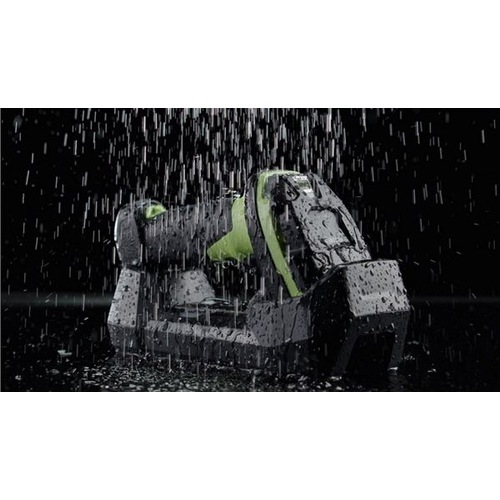

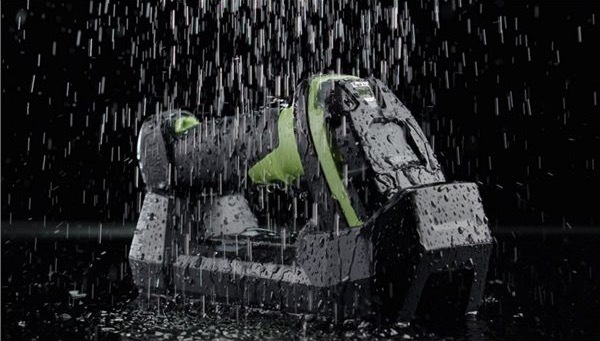

• Dustproof, sprayproof and waterproof
• Only scanners with two sealing ratings, IP65, IP67, only scanner with IP67 rating
• Result is a scanner that is 100 percent dustproof, can handle the force of jetting water and can survive 30 minutes fully submerged in water
• Built for blazing heat and sub-zero temperatures in freezers and outdoor yards
• Heated scanner holder accessory required for use in freezers

Symbology/Resolution Near/Far

• Code 39: 4 mil 4.0-10.0 in./10.2-25.4 cm
• Code 39: 7.5 mil 1.5-19.0 in./3.8-48.3 cm
• UPC: 13 mil (100%) 1.0-31.0 in./2.5-78.7 cm
• Code 39: 20 mil 0-42.0 in./0-106.7 cm

More Features:

• Capture any barcode in any condition, scratched, dirty, poorly printed, under shrinkwrap or frost - first time every time scanning
• Capture up to 20 barcodes with a single press of the trigger - time-saving Multi-code feature
• Superior pick-list functionality - includes aiming technology that makes it easy for your workers to select and scan even small barcodes
• Capture printed and electronic barcodes

Bluetooth Technology:

• Bluetooth 4.0 for lightning fast data capture - Bluetooth Low Energy&nbsp
• Battery power for up to 70,000 scans or more - More than 50 percent more battery capacity than competitive models
• Deploy bluetooth with zero wi-fi network interference guaranteed - Wifi Friendly Mode
• First in its class battery charge gauge
• Easy bluetooth troubleshooting - Bluetooth status LED right on scanner, easy for users to check and restore lost connectivity, minimizing calls to the help desk

Physical Characteristics

• Dimensions Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D / 18.5 cm H x 7.6 cm W x 13.2 cm D / Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D / 18.5 cm H x 7.6 cm W x 14.2 cm D
• Weight Corded: 10.1 oz./287 g; Cordless: 13.6 oz./385 g
• Input Voltage Range:  Host powered: 4.5 VDC min., 5.5 VDC max. / External power supply: 11.4 VDC min., 12.6 VDC max.
• Operating Current: LI3608 (corded): 170 mA (typical)
• Standby Current: LI3608 (corded): 40 mA (typical)
• Color: Industrial Green
• Supported Host Interfaces: USB, RS232, Keyboard Wedge
• Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
• Battery: PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
• User Indicators: Direct decode indicator; LEDs; beeper; vibration

Performance Characteristics

• Scans per Full Charge:  100,000+
• Illumination: 660 nm LED
• Aimer: 655 nm laser
• Imager Field of View: Near: 32° (H) x 20° (V); Far: 12° (H) x 7.6° (V)
• Image Sensor: 2,496 pixels
• Minimum Print Contrast: 25% minimum reflective difference
• Skew/Pitch/Roll: Skew: ± 65°; Pitch: ± 65°; Roll: ± 45°

Decode capabilities

• 1D:  Code 39, Code 128, Code 93, Codabar/NW7, Code 1, MSI Plessey, PC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

User Environment

• Operating Temp: Corded: -22° F to 122° F/-30° C to 50° C, Cordless: -4° F to 122° F/-20° C to 50° C
• Storage Temp.: -40° F to 158° F/-40° C to 70° C
• Humidity: 5% to 95% condensing
• Drop Specification: Withstands multiple 8.0 ft. / 2.4 m drops to concrete
• Tumble Specification: 5,000 tumbles @ 3.3 ft. (1 m)
• Sealing: Scanner: IP65 and IP67; FLB cradle: IP65
• ESD: Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
• Ambient Light Immunity: 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)

Utilities and maintenance

• 123Scan2: Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan
• Scanner SDK: Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK
• Scanner Management:  Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms

WIRELESS CONNECTIVITY

• Bluetooth Radio: Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles

Data Rate:

• 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
• 1 Mbit/s (0.27 Mbit/s) for Low Energy

Radio Range

• Direct line of sight in open air :
• Class 1: Up to 300 ft. (100.0 m)
• Class 2: Up to 30 ft. (10.0 m)

Regulatory

• Environmental: RoHS EN 50581: 2012
• Electrical Safety:
• EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013
• International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013
• US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
• LED Safety:International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED)
• EMI/RFI IT Emissions: EN 55022: 2010/AC: 2011 (Class B)
• IT Immunity: EN 55024: 2010
• Heavy Industrial: EN 61000-6-2: 2005/AC:2005
• Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B)
• Voltage Fluctuation and Flicker: EN 61000-3-3: 2013
• Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified)
• Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B
• Digital Apparatus: ICES-003 Issue 5, Class B

WARRANTY

• Subject to the terms of Zebra’s hardware warranty statement, the LI3608 / LI3678  is warranted against defects in workmanship and materials for a period of three (3) years from the date of shipment. For complete warranty statement, go to: http://www.zebra.com/warranty
• Recommended Services: Zebra OneCare Select; Zebra OneCare Essential decode ranges
